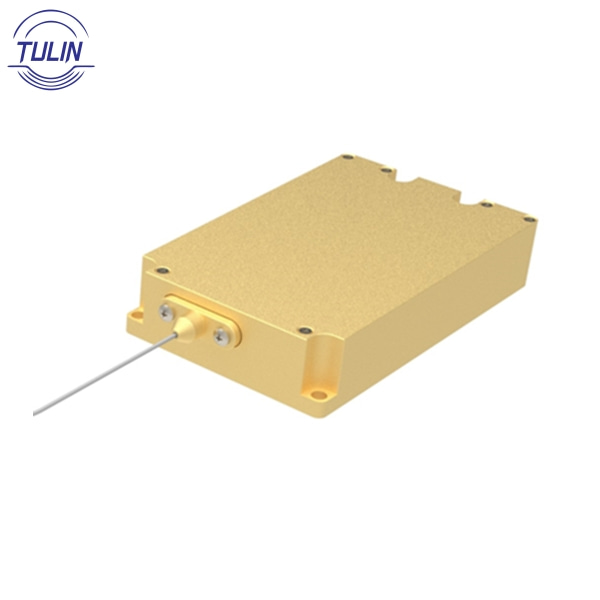

525nm Module
We offer 525nm fiber coupled laser diode modules with various power options. With high-efficiency heat conduction and long lifespan, these modules are widely recognized in the market for their reliable performance and exceptional quality.
| No. | Product Code | Wavelength(nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter(μm) | Mode |
| 1 | TL-525-00236E | 525 | 2 | 105 | MM | ||
| 2 | TL-525-C3236A | 525 | 3.2 | ≤2 | 16 | 50 | MM |
| 3 | TL-525-00436A | 525 | 4 | ≤2 | 21 | 50 | MM |
| 4 | TL-525-00436E | 525 | 4 | 1.18 | 16.95 | 105 | MM |
| 5 | TL-525-00536E | 525 | 5 | ≤2 | 21 | 105 | MM |
| 6 | TL-525-00636B | 525 | 6 | ≤2 | 31.5 | 60 | MM |
| 7 | TL-525-01536E | 525 | 15 | ≤2 | 41*2 | 105 | MM |
| 8 | TL-525-02036G | 525 | 20 | ≤2 | 41*2 | 200 | MM |
| 9 | TL-520-04036D | 520 | 40 | 100 | MM | ||
| 10 | TL-525-07036G | 525 | 70 | ≤2 | 41*8 | 200 | MM |
| 11 | TL-525-10036G | 525 | 100 | 200 | MM |
