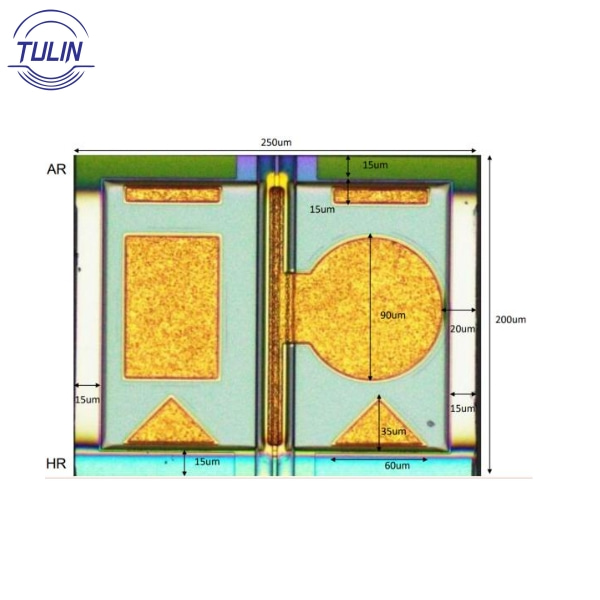

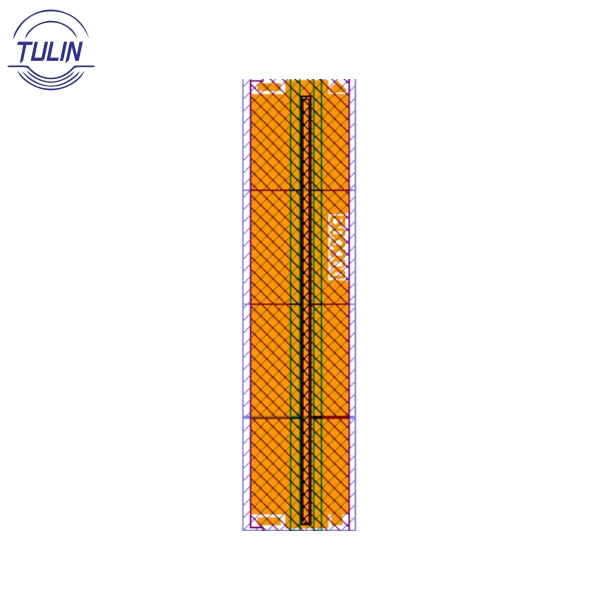

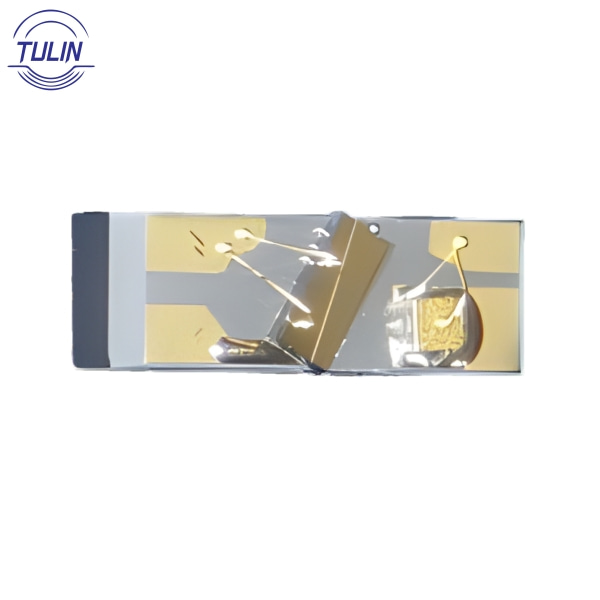

DFB Chip
We offer DFB chips in various wavelengths for optical communication. Featuring high data rates, low power consumption, and excellent signal integrity, these datacom chips have been widely adopted across the industry and consistently deliver reliable high-speed performance.
Datacom Chips:
| No. | Product Code | Wavelength(nm) | Bandwidth | Operating Current(mA) | Operating Voltage(V) |
| 1 | TL-1270-G02030 | 1270 | 2.5G | ||
| 2 | TL-1270-G10030 | 1270 | 10G | 28 | 1.2 |
| 3 | TL-CWDM4-G25030 | CWDM4 | 25G | ||
| 4 | TL-LWDM4-G25030 | LANWDM4 | 25G | ||
| 5 | TL-1286-G25030 | 1286 | 25G | 6 | 1.5 |
| 6 | TL-1310-G02020(FP) | 1310 | 2.5G | ||
| 7 | TL-1310-G02030 | 1310 | 2.5G | ||
| 8 | TL-1310-G10020(FP) | 1310 | 10G | ||
| 9 | TL-1310-G10030 | 1310 | 10G | 29 | 1.2 |
| 10 | TL-1310-G25030 | 1310 | 25G | ||
| 11 | TL-1330-G10030 | 1330 | 10G | ||
| 12 | TL-1490-G02030 | 1490 | 2.5G | ||
| 13 | TL-1550-G02020(FP) | 1550 | 2.5G | ||
| 14 | TL-1550-G02030 | 1550 | 2.5G | ||
| 15 | TL-1550-G10060(EML) | 1550 | 10G | ||
| 16 | TL-1577-G10060(EML) | 1577 | 10G |
Pon Chips:
| No. | Product Code | Wavelength(nm) | Bandwidth | Package Type |
| 1 | TL-1270-G02030 | 1270 | 2.5G | Chip/TO |
| 2 | TL-1270-G10030 | 1270 | 10G | Chip/TO |
| 3 | TL-1286-G25030 | 1286 | 25G | Chip/TO |
| 4 | TL-1300-G25030 | 1300 | 25G | Chip/TO |
| 5 | TL-1358-G25030 | 1358 | 25G | Chip/TO |
| 6 | TL-1490-G02030 | 1490 | 2.5G | Chip/TO |
| 7 | TL-1577-G10020(EML) | 1577 | 10G | Chip/TO |
Wireless Chips:
| No. | Product Code | Wavelength(nm) | Bandwidth | Package Type |
| 1 | TL-1270-G10030 | 1270 | 10G | Chip/TO |
| 2 | TL-1270-G25030 | 1270 | 25G | Chip/TO |
| 3 | TL-1310-G10030 | 1310 | 10G | Chip/TO |
| 4 | TL-1310-G25030 | 1310 | 25G | Chip/TO |
| 5 | TL-1330-G10030 | 1330 | 10G | Chip/TO |
| 6 | TL-1330-G25030 | 1330 | 25G | Chip/TO |
| 7 | TL-CWDM6-G25030 | CWDM6 | 25G | Chip/TO |
| 8 | TL-LWDM12-G25030 | LWDM12 | 25G | Chip/TO |
| 9 | TL-MWDM12-G25030 | MWDM12 | 25G | Chip/TO |

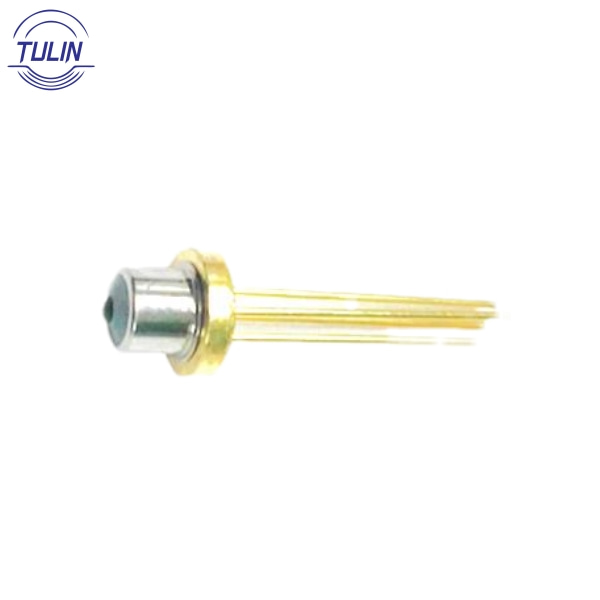

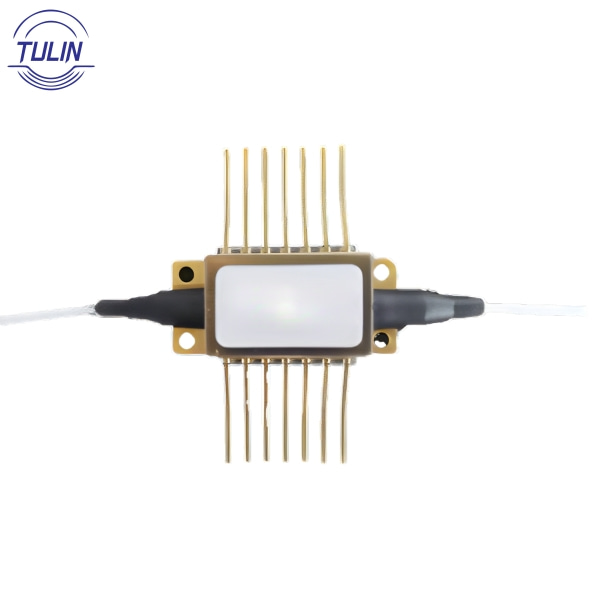

Light Source Products:
| No. | Product Code | Wavelength(nm) | Output Power(mW) | Operating Current(mA) | Operating Voltage(V) |
| 1 | TL-1270-SL1120 | 1270 | |||
| 2 | TL-1290-SL1120 | 1290 | |||
| 3 | TL-1310-SL1120 | 1310 | 160 | 10 | 1.8 |
| 4 | TL-1330-SL1120 | 1330 | |||
| 5 | TL-1550-SL1120 | 1550 | 80 | 0.2 | 1.6 |
