A Comprehensive Overview of TO Packages

Transistor Outline (TO) packages are a widely used form of encapsulation for electronic components, particularly for optoelectronic devices such as laser diodes, photodiodes, and LEDs. Their robust design, thermal performance, and versatility make them suitable for a wide range of applications. This article explores the various types of TO packages, their structures, and their applications.

1. Standard TO Packages

Standard TO packages, such as TO-18, TO-46, and TO-92, are some of the earliest forms of TO designs. They consist of a cylindrical metal body with a glass-to-metal seal to provide electrical insulation and mechanical support for the leads.

• TO-18: Used in small-signal transistors and low-power optoelectronic devices.
• TO-46: Common for laser diodes and photodiodes where compact size and precision alignment are required.
• TO-92: Often used for transistors and temperature sensors, suitable for low-cost and mass-production applications.

2. TO-CAN Packages

TO-CAN packages are a subset of TO designs optimized for optoelectronic components. They include a hermetically sealed metal can that provides environmental protection and mechanical stability.

• TO-5 and TO-8: Larger than standard TO packages, they are used for high-power devices and laser diodes.

• TO-9: Known for its larger size and enhanced thermal capabilities, it is often used in high-power laser and optical applications.

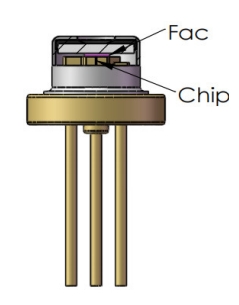

TO-9

• TO-18 and TO-46 Variants: These variants may include additional features such as integrated lenses or thermoelectric coolers for enhanced optical performance.

TO-18

3. High-Power TO Packages

High-power TO packages, such as TO-220 and TO-247, are designed to handle significant power dissipation. They often include a heat sink or mounting tab for efficient thermal management.

• TO-220: Used in power transistors, voltage regulators, and power diodes.

• TO-247: Suitable for higher power levels and applications requiring better heat dissipation.

• TO-3: A classic design for high-power transistors and regulators, known for its robust thermal and mechanical performance. The metal case and mounting base provide excellent heat dissipation, making it ideal for power applications.

TO-3

4. Customized TO Packages

Customized TO packages are tailored to specific application needs. These designs may include additional features such as:

• Integrated Lenses: For precise beam shaping in laser diodes.
• Thermoelectric Coolers (TECs): For temperature control in sensitive optoelectronic devices.
• Fiber Coupling: For efficient light delivery in communication systems.

5. Emerging TO Designs

With the advancement of semiconductor and optoelectronic technologies, newer TO packages are being developed to address the needs of compact, high-performance devices.

• TO-56 and TO-66: Emerging designs for high-frequency and high-power optoelectronic applications.

• Miniaturized TO Packages: Designed for modern portable devices and compact systems.

TO-56

Applications of TO Packages

TO packages are utilized in diverse industries, including:

• Telecommunications: Laser diodes and photodiodes in fiber-optic communication systems.
• Medical Devices: High-precision sensors and laser sources.
• Industrial Applications: High-power LEDs and sensors for automation and control.
• Consumer Electronics: Compact, reliable components for portable devices.

Conclusion

TO packages remain a cornerstone of electronic and optoelectronic component packaging. Their versatility, robust design, and adaptability to different applications make them indispensable in modern technology. As industries evolve, TO packages continue to innovate, meeting the demands of new and emerging applications.
