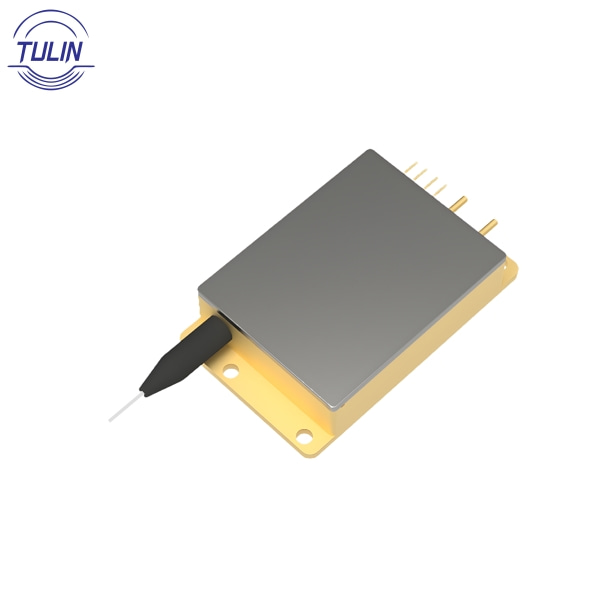

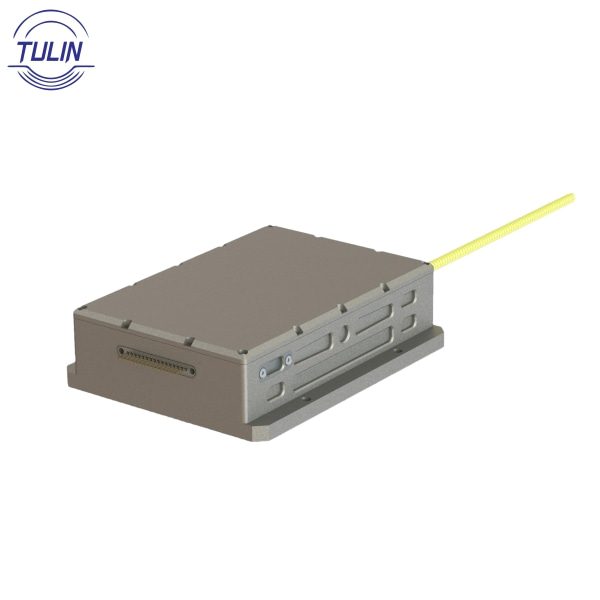

940nm Module
We offer 940nm fiber coupled laser diode modules with various power options. Featuring high power, excellent electro-optical conversion efficiency, and long lifespan, these modules are widely adopted in the market and consistently deliver outstanding performance.
| No. | Product Code | Wavelength(nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter (μm) | Mode |
| 1 | TL-940-01036E | 940 | 10 | 12 | 1.7 | 105 | MM |
| 2 | TL-940-02036E | 940 | 20 | 13 | 3.5 | 105 | MM |
| 3 | TL-940-03036E | 940 | 30 | 12 | 5.4 | 105 | MM |
| 4 | TL-940-06036E | 940 | 60 | 11.5 | 10.2 | 105 | MM |
| 5 | TL-940-09036E | 940 | 90 | 12 | 15 | 105 | MM |
| 6 | TL-940-13036E | 940 | 130 | 12 | 22 | 105 | MM |
| 7 | TL-940-17036E | 940 | 170 | 12 | 28 | 105 | MM |
| 8 | TL-940-20036E | 940 | 200 | 12 | 36 | 105 | MM |
| 9 | TL-940-22036F | 940 | 220 | 22 | 21 | 135 | MM |
| 10 | TL-940-32036G | 940 | 320 | 25 | 26.5 | 200 | MM |
| 11 | TL-940-48036G | 940 | 480 | 25 | 38.5 | 200 | MM |
| 12 | TL-940-50036I | 940 | 500 | 22 | 46.5 | 400 | MM |
