450nm Module

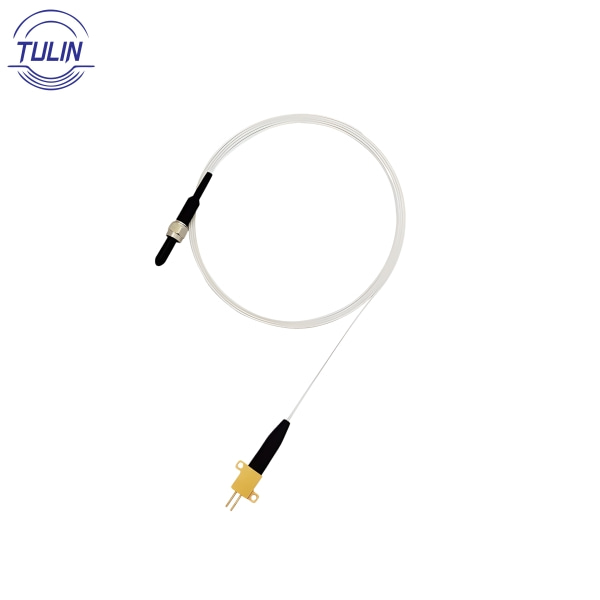

We offer 450nm fiber-coupled and spatial-coupling modules with various power options. With high efficiency and long lifespan, these modules are widely recognized in the market for their reliable performance and exceptional quality.
Unless otherwise specified, all are standard fiber-coupled modules. The structure, output interface, and fiber core diameter can be customized according to specific requirements.
| No. | Product Code | Wavelength(nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter(μm) | Mode |
| 1 | TL-440-00336E | 440 | 3 | 2.5 | 4.4 | 105 | MM |
| 2 | TL-450-00536E | 450 | 4.5 | 3.0 | 4.6 | 105 | MM |
| 3 | TL-450-00736G | 450 | 7 | 2.6 | 8.4 | 200 | MM |
| 4 | TL-450-05036D | 450 | 50 | 2.8 | 55.6 | 100 | MM |
| 5 | TL-450-020370 (Spatial-coupling) | 450 | 20 | 3.0 | 17.2 | / | MM |
| 6 | TL-450-040370 (Spatial-coupling) | 450 | 40 | 3.3 | 15.6 | / | MM |
| 7 | TL-450-10036E | 450 | 100 | 3.0 | 49.0 | 105 | MM |
| 8 | TL-450-20036G | 450 | 200 | 3.0 | 65.0 | 200 | MM |
| 9 | TL-450-50036G | 450 | 500 | 3.5 | 93.0 | 200 | MM |
