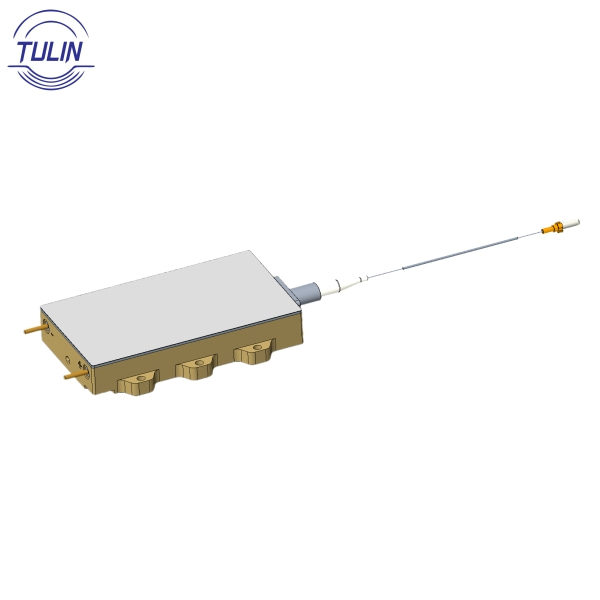

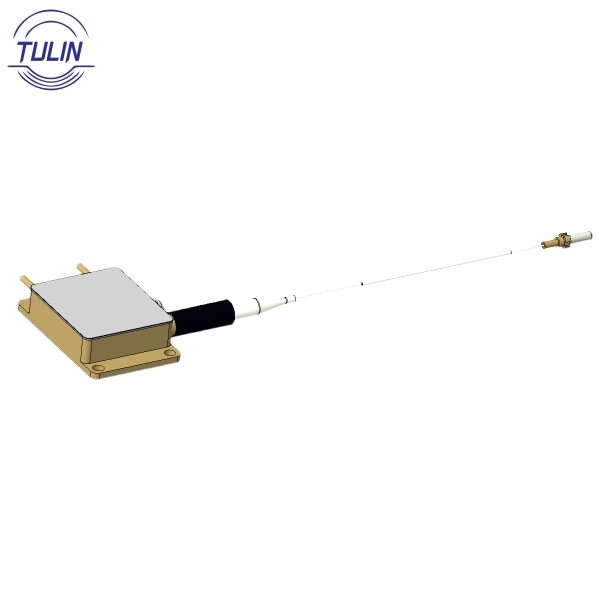

976nm Module
We provide 976nm fiber coupled laser diode modules with various power options. Featuring high brightness, excellent electro-optical conversion, and exceptional reliability, these modules have been widely adopted in the market and consistently deliver outstanding performance.
| No. | Product Code | Wavelength(nm) | Output Power(W) | Operating Current(A) | Operating Voltage(V) | Core Diameter/Cladding Diameter(μm) | Mode |
| 1 | TL-976-01036E | 976 | 10 | 11 | 1.5 | 105/125 | MM |
| 2 | TL-976-02036E | 976 | 20 | 11 | 3 | 105/125 | MM |
| 3 | TL-976-03036E | 976 | 30 | 11 | 4.5 | 105/125 | MM |
| 4 | TL-976-05536E | 976 | 55 | 11 | 9 | 105/125 | MM |
| 5 | TL-976-06036E | 976 | 60 | 11 | 9 | 105/125 | MM |
| 6 | TL-976-10036E | 976 | 100 | 12 | 16.5 | 105/125 | MM |
| 7 | TL-976-14036E | 976 | 140 | 10 | 27 | 105/125 | MM |
| 8 | TL-976-23036F | 976 | 230 | 20 | 23 | 135/155 | MM |
| 9 | TL-976-30036G | 976 | 300 | 20 | 27 | 200/220 | MM |
| 10 | TL-976-32036G | 976 | 320 | 25 | 26.5 | 200/220 | MM |
| 11 | TL-976-32036H | 976 | 320 | 32 | 21 | 220/242 | MM |
| 12 | TL-976-35036F | 976 | 350 | 23 | 30 | 135/155 | MM |
| 13 | TL-976-35036G | 976 | 350 | 25 | 26.5 | 200/220 | MM |
| 14 | TL-976-35036H | 976 | 350 | 32 | 21 | 220/242 | MM |
| 15 | TL-976-37036G | 976 | 370 | 26.5 | 27 | 200/220 | MM |
| 16 | TL-976-38036F | 976 | 380 | 24 | 29.5 | 135/155 | MM |
| 17 | TL-976-42036F | 976 | 420 | 27 | 29.5 | 135/155 | MM |
| 18 | TL-976-42036G | 976 | 420 | 30 | 27 | 200/220 | MM |
| 19 | TL-976-42036H | 976 | 420 | 32 | 25.5 | 220/242 | MM |
| 20 | TL-976-45036F | 976 | 450 | 36 | 32.5 | 135/155 | MM |
| 21 | TL-976-45036G | 976 | 450 | 30 | 28.5 | 200/220 | MM |
| 22 | TL-976-45036H | 976 | 450 | 32 | 25.5 | 220/242 | MM |
| 23 | TL-976-48036H | 976 | 480 | 32 | 27.5 | 220/242 | MM |
| 24 | TL-976-50036H | 976 | 500 | 32 | 29 | 220/242 | MM |
| 25 | TL-976-53036H | 976 | 530 | 32 | 29 | 220/242 | MM |
| 26 | TL-976-56036G | 976 | 560 | 30 | 40.5 | 200/220 | MM |
| 27 | TL-976-65036H | 976 | 650 | 29 | 41 | 220/242 | MM |
| 28 | TL-976-66036H | 976 | 660 | 40 | 34.5 | 220/242 | MM |
| 29 | TL-976-68036H | 976 | 680 | 40 | 35.5 | 220/242 | MM |
