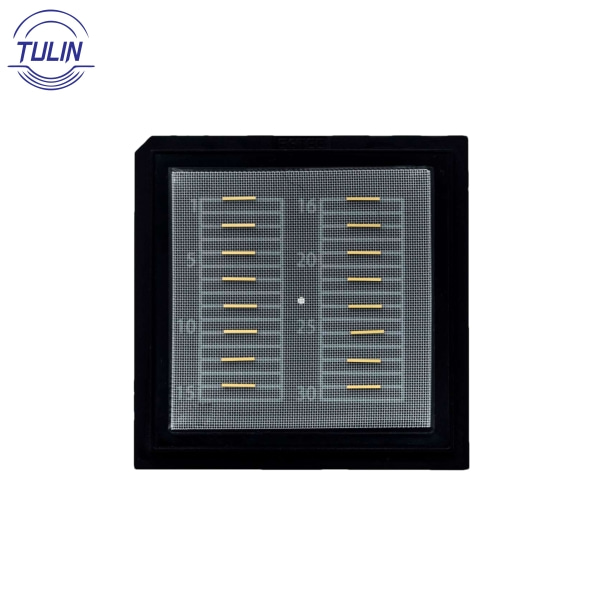

EEL Chip

Short Description:

We provide a range of products in various wavelengths to our customers in the form of bare chips. Known for their high quality, reliability, and excellent conversion efficiency, these products have been widely adopted in the market and consistently deliver outstanding performance.

Wavelength: 638nm~4587nm
Output Power: 0.03W~1200W

CONTACT NOW

Product Details

We provide a range of products in various wavelengths to our customers in the form of single bar diode laser chips. Known for their high quality, reliability, and excellent conversion efficiency, these products have been widely adopted in the market and consistently deliver outstanding performance.

No.	Product Code	Description	Emitter Width (μm)	Output Power(W)	Operating Current(A)	Operating Voltage(V)	Mode
1	TL-638-B50020	638nm chip	55	0.5	0.7	2.2	MM
2	TL-638-001020	638nm chip	110	1	1.5	2.1	MM
3	TL-665-B50020	665nm chip	55	0.5	0.7	2.2	MM
4	TL-665-002020	665nm chip		2	2	2.1	MM
5	TL-690-002020	690nm chip		2	1.6	2.1	MM
6	TL-755-008020	755nm chip	190	8			MM
7	TL-755-010021	755nm chip	350	10	9	1.8	MM
8	TL-765-008020	765nm chip	190	8			MM
9	TL-780-005020	780nm chip	96	5	5	1.8	MM
10	TL-780-006020	780nm chip	150	6	6	1.8	MM
11	TL-780-010020	780nm chip	190	10			MM
12	TL-790-010020	790nm chip	190	10	10	1.8	MM
13	TL-793-010020	793nm chip	190	10			MM
14	TL-808-003020	808nm chip	150	3	2.5	1.8	MM
15	TL-808-005020	808nm chip	96	5	5	1.8	MM
16	TL-808-005021	808nm chip	190	5	5	1.8	MM
17	TL-808-010020	808nm chip	190	10	10	1.8	MM
18	TL-808-010021	808nm chip	350	10	10	1.8	MM
19	TL-808-015020	808nm chip	220	15			MM
20	TL-808-018020	808nm chip	250	18			MM
21	TL-808-022020	808nm chip	340	22			MM
22	TL-808-025020	808nm chip	400	25			MM
23	TL-830-002020	830nm chip	40	2	2	1.8	MM
24	TL-830-C25020	830nm chip	40	2.5			MM
25	TL-830-C25021	830nm chip	50	2.5			MM
26	TL-850-B30020	850nm chip	3	0.3	0.38	1.78	SM
27	TL-850-B60020	850nm chip	3	0.6	0.7	1.8	SM
28	TL-878-015020	878nm chip	190	15			MM
29	TL-878-018020	878nm chip	220	18			MM
30	TL-878-025020	878nm chip	250	25			MM
31	TL-880-010020	880nm chip	190	10	12	1.8	MM
32	TL-880-010020	880nm chip	350	10	10	1.8	MM
33	TL-880-015020	880nm chip	190	15	15	1.7	MM
34	TL-880-018020	880nm chip	190	18			MM
35	TL-888-015020	888nm chip	190	15			MM
36	TL-888-018020	888nm chip	220	18			MM
37	TL-888-025020	888nm chip	250	25			MM
38	TL-905-A40020	905nm chip		0.04			SM
39	TL-905-006020	905nm chip	50x2	6	5	2.6	MM
40	TL-905-020020	905nm chip	50x10	20	6	7.6	MM
41	TL-905-025020	905nm chip	75x10	25	7	7	MM
42	TL-905-040020	905nm chip	100x10	40	13	8.5	MM
43	TL-905-065020	905nm chip	135x13	65	19	8.9	MM
44	TL-905-075020	905nm chip	300x10	75	22	9.5	MM
45	TL-905-085020	905nm chip	135x16	85	20	11	MM
46	TL-905-135020	905nm chip	300x13	135	38	12.2	MM
47	TL-905-165020	905nm chip	300x14	165	39	14	MM
48	TL-905-225020	905nm chip	300x19	225	38	17.6	MM
49	TL-905-500020	905nm chip		500	160	11	MM
50	TL-905-D12020	905nm chip		1200	320	15	MM
51	TL-915-B50020	915nm chip	28	0.5			MM
52	TL-915-010020	915nm chip	96	10	10	1.7	MM
53	TL-915-012020	915nm chip	90	12			MM
54	TL-915-015020	915nm chip	190	15	15	1.7	MM
55	TL-915-025020	915nm chip	190	25			MM
56	TL-915-025021	915nm chip	220	25			MM
57	TL-915-030020	915nm chip	220	30			MM
58	TL-915-035020	915nm chip	300	35			MM
59	TL-915-040020	915nm chip	290	40			MM
60	TL-915-045020	915nm chip	320	45			MM
61	TL-915-050020	915nm chip	330	50	50	1.65	MM
62	TL-915-055020	915nm chip	400	55	56	1.65	MM
63	TL-915-065020	915nm chip	500	65	65	1.65	MM
64	TL-940-004020	940nm chip	190	4	4	1.55	MM
65	TL-940-010020	940nm chip	96	10	10	1.7	MM
66	TL-940-015020	940nm chip	190	15	15	1.7	MM
67	TL-940-025020	940nm chip	230	25			MM
68	TL-940-045020	940nm chip	320	45			MM
69	TL-976-B50020	976nm chip	28	0.5			MM
70	TL-976-010020	976nm chip	96	10	10	1.7	MM
71	TL-976-012020	976nm chip	90	12			MM
72	TL-976-013020	976nm chip	96	13	13	1.5	MM
73	TL-976-015020	976nm chip	190	15	15	1.7	MM
74	TL-976-018020	976nm chip	150	18	18	1.6	MM
75	TL-976-020020	976nm chip	150	20			MM
76	TL-976-022020	976nm chip	190	22			MM
77	TL-976-024020	976nm chip	190	24			MM
78	TL-976-025020	976nm chip	190	25	23	1.7	MM
79	TL-976-030020	976nm chip	230	30	28	1.6	MM
80	TL-976-035020	976nm chip	230	35			MM
81	TL-976-045020	976nm chip	320	45			MM
82	TL-976-050020	976nm chip	400	50	55	1.55	MM
83	TL-976-060020	976nm chip	500	60	65	1.55	MM
84	TL-980-B30020	980nm chip	3	0.3	0.4	1.85	SM
85	TL-980-B60020	980nm chip	3	0.6	0.75	1.85	SM
86	TL-1064-B30020	1064nm chip	3	0.3	0.41	1.65	SM
87	TL-1064-B60020	1064nm chip	3	0.6	0.9	1.75	SM
88	TL-1064-B80020	1064nm chip	3.5	0.8	1.0	0.42	SM
89	TL-1064-003020	1064nm chip	150	3	3	1.4	MM
90	TL-1064-005020	1064nm chip	190	5	5	1.6	MM
91	TL-1064-008020	1064nm chip	90	8			MM
92	TL-1064-010020	1064nm chip	190	10	13	1.7	MM
93	TL-1064-010022	1064nm chip	350	10	14	1.7	MM
94	TL-1064-012020	1064nm chip	190	12	15	1.65	MM
95	TL-1064-015020	1064nm chip	190	15			MM
96	TL-1064-020020	1064nm chip	230	20			MM
97	TL-1210-004020	1210nm chip	95	4	8	1.7	MM
98	TL-1310-A70030	1310nm chip		0.07			DFB
99	TL-1310-003020	1310nm chip	95	3	9	1.4	MM
100	TL-1310-006020	1310nm chip	190	6	14	1.3	MM
101	TL-1470-C15020	1470nm chip	96	1.5	4	1.5	MM
102	TL-1470-C36020	1470nm chip	96	3.6	9	1.5	MM
103	TL-1470-C55020	1470nm chip	190	5.5	15	1.6	MM
104	TL-1550-A60030	1550nm chip		0.06	0.25	1.47	DFB
105	TL-1550-A80030	1550nm chip		0.08	0.5	2	DFB
106	TL-1550-B15030	1550nm chip		0.15	0.7	2	DFB
107	TL-1550-B26030	1550nm chip		0.26	1.3	2	DFB
108	TL-1550-003020	1550nm chip	95	3	8	1.2	MM
109	TL-1550-004020	1550nm chip	96	4	9	1.6	MM
110	TL-1550-005020	1550nm chip	190	5	14	1.2	MM
111	TL-1550-C55020	1550nm chip	190	5.5	15	1.5	MM
112	TL-1550-030020	1550nm chip	190	30	48	16	MM
113	TL-1710-003020	1710nm chip	95	3	10	1.15	MM
114	TL-1710-005020	1710nm chip	190	5	19	1.3	MM
115	TL-1725-C25020	1725nm chip	96	2.5	9	1.35	MM
116	TL-1940-001020	1940nm chip	94	1	5	1.13	MM
117	TL-1940-C15020	1940nm chip	190	1.5	9	1.13	MM
118	TL-4587-A30020	4587nm chip	3	0.03	0.04	10	DFB
